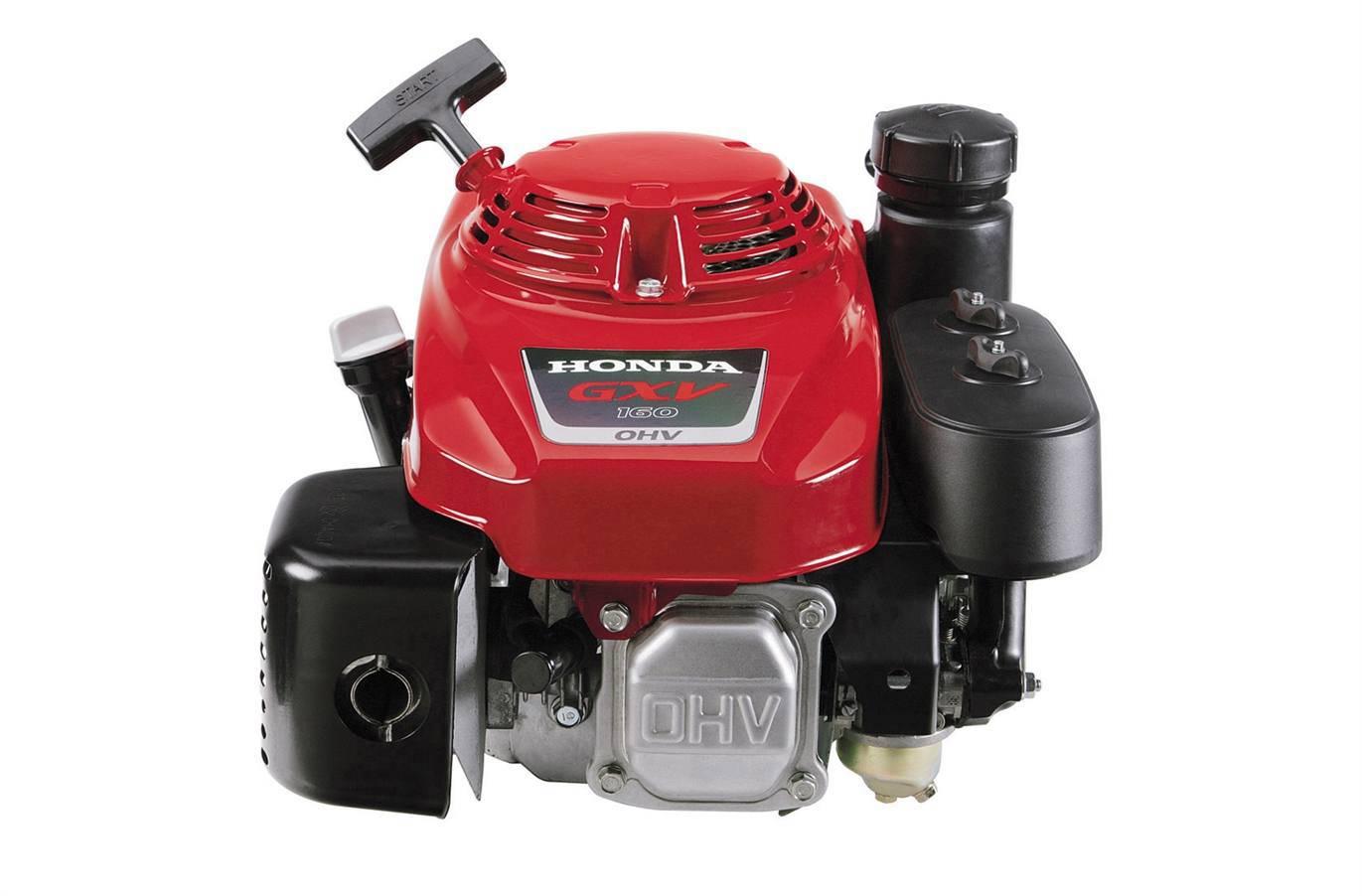

Honda Engines GXV160 - New - Available in Hudson Bay

Quality and performance come standard.

Professionals rely on the GXV160 to deliver reliable, easy starting, fuel efficient performance, day in and day out.

Common Applications* Lawn mowers
* Commercial lawn and garden equipment
* Forestry equipment
* Construction / industrial equipment
* Agricultural equipment

Fuel Efficient, High Output Operation* Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficency
* OHV design for increased efficiency and optimal power transfer
* High compression ratio for better fuel efficiency

Smooth Performance* Precision engineered components result in lower vibration
* Ball bearing supported crankshaft for greater stability

Exceptionally Quiet* Large capacity, multi-chamber exhaust system
* Reduced mechanical noise due to light weight, noise-reducing materials
* Forged steel crankshaft and rigid crankcase
* Helical cut gears
* Sophisticated air intake system

Proven Reliability* Oil Alert
* Cast iron cylinder sleeve
* High quality materials, fit, and finish
* Dual element air cleaner
* Fuel Valve

Easy to Use and Maintain* Large fuel tanks
* Large fuel tank
* Easily accessible spark plug

Easy Starting* Heavy duty recoil starter
* Automatic mechanical de-compression system

Emissions Compliant* EPA certified
* No catalyst necessary

Available Options* Electic start
* Gear reduction options
* Spark arrester available
* Charge and lamp coils with multiple output options available

Specifications* Engine Type: Air-cooled 4-stroke OHV
* Bore x Stroke: 68 X 45 mm
* Displacement: 163 cm3

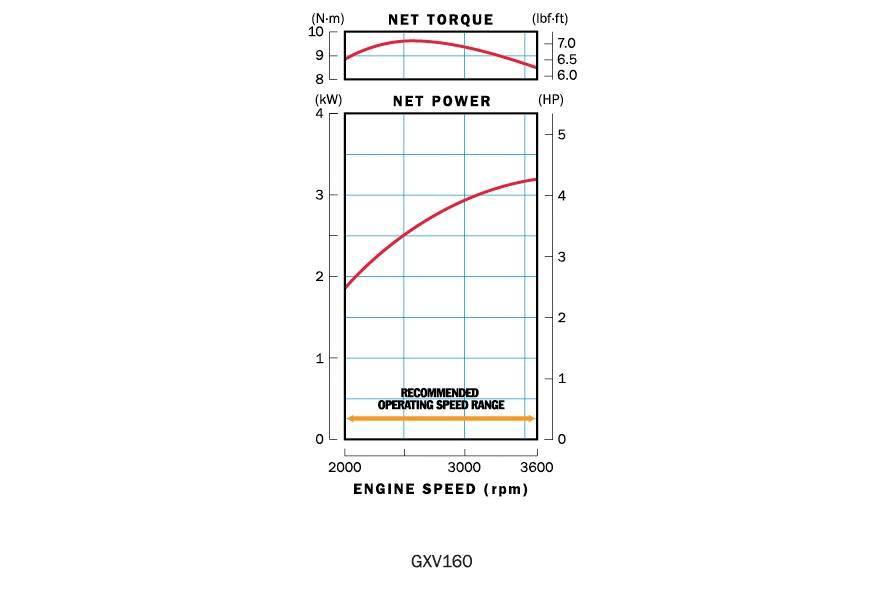

* Net Power Output\*: 4.3 hp (3.2 kW) @ 3,600 rpm
* Net Torque: 7.1 lb-ft (9.6 Nm) @ 2,500 rpm
* PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
* Compression Ratio: 8.0:1
* Carburetor: Float Type
* Ignition System: Transistorized magneto
* Starting System: Recoil
* Lubrication System: Splash
* Governor System: Centrifugal Mechanical
* Air Cleaner: Dual element
* Oil Capacity: 0.69 US qt (0.65l)
* Fuel Tank Capacity: 1.5 U.S. qts (1.4 liters)
* Fuel: Unleaded 86 octane or higher
* Dry Weight: 32 lb (14.5 kg)

Dimensions* Length (min): 16.3" (415mm)
* Width (min): 14.1" (359mm)
* Height (min): 13.9" (354mm)

PTO* LM: Straight shaft
* N1: Straight shaft
* N5: Straight shaft
Quality and performance come standard.

Professionals rely on the GXV160 to deliver reliable, easy starting, fuel efficient performance, day in and day out.

Common Applications* Lawn mowers
* Commercial lawn and garden equipment
* Forestry equipment
* Construction / industrial equipment
* Agricultural equipment

Fuel Efficient, High Output Operation* Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficency
* OHV design for increased efficiency and optimal power transfer
* High compression ratio for better fuel efficiency

Smooth Performance* Precision engineered components result in lower vibration
* Specifications
--------------

**Engine Type**
Air-cooled 4-stroke OHV

**Bore x Stroke**
68 x 45 mm

**Displacement**
163 cm3

**Compression Ratio**
8.0:1

**Horsepower**
4.3 hp (3.2 kW) @ 3,600 rpm

**Torque**
7.1 lb.-ft (9.6 Nm) @ 2,500 rpm

**Fuel Capacity**
1.5 U.S. qt. (1.4 L)

**Starting System**
Recoil

**Length**
16.3 in. (415mm)

**Width**
14.1 in. (359mm)

**Height**
13.9 in. (354mm)

**Weight**
32 lb. (14.5 kg)
