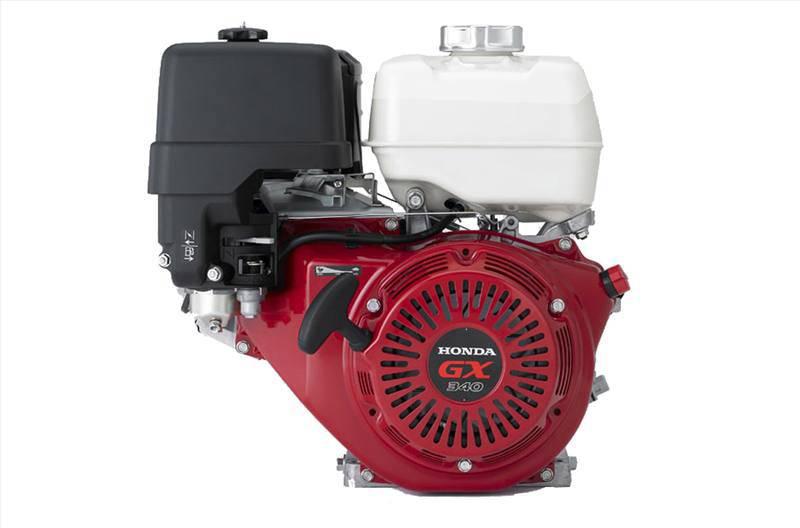

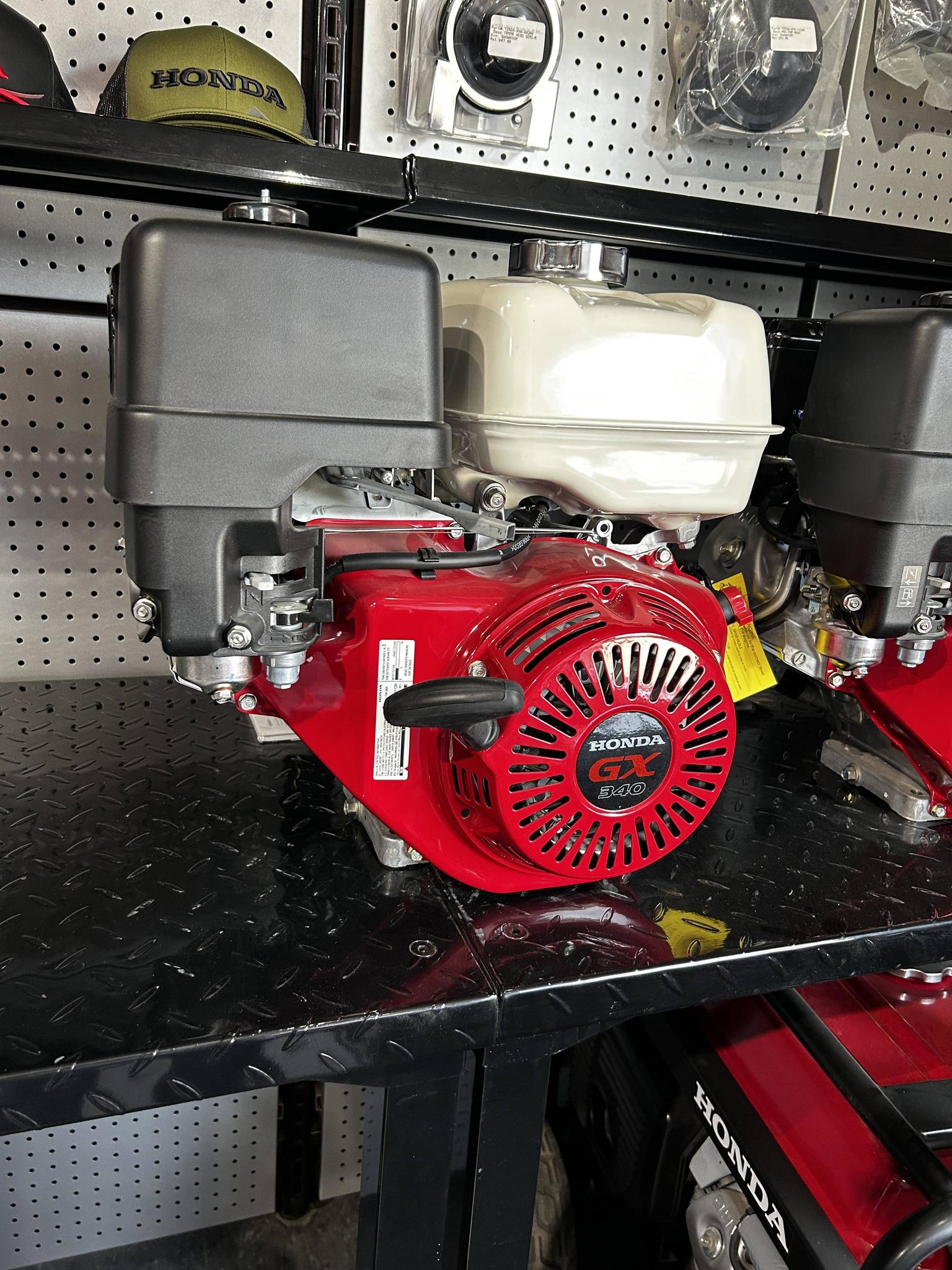

Honda Engines GX340 - New - Available in Hudson Bay

Powerful. Reliable. Durable.

With the GX340 and 390, you’re looking at some of the best engines in the business. Powerful, Reliable, Durable, and Quiet. Honda’s GX Series is power you can trust, and then some.

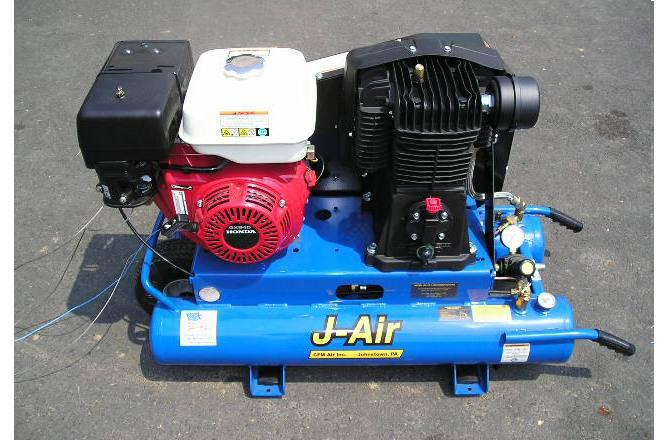

Common Applications* Pressure washers
* Commercial lawn and garden equipment
* Tillers / cultivators

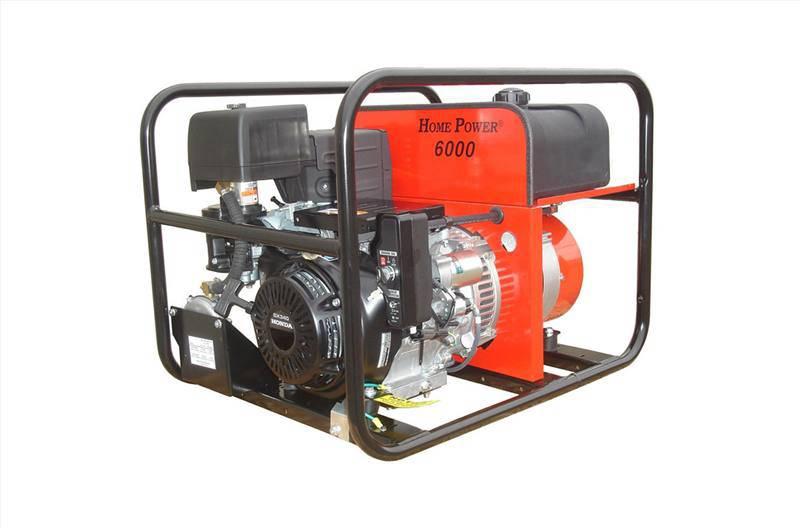

* Generators
* Forestry equipment

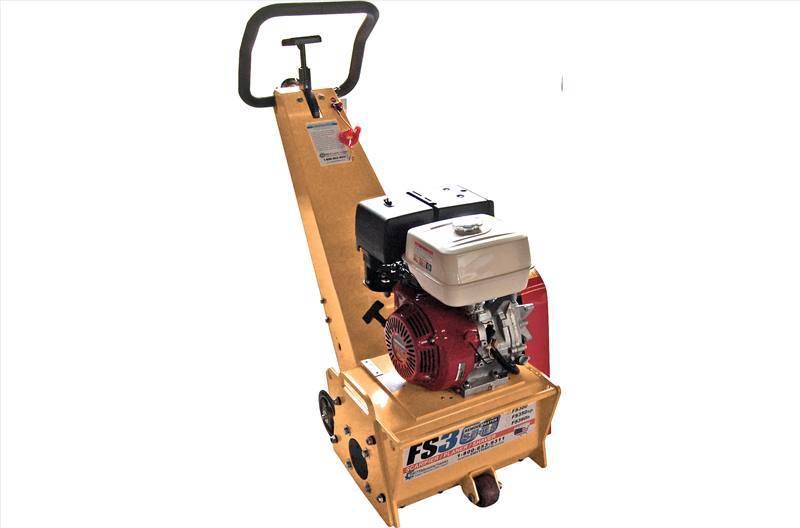

* Construction / industrial equipment
* Agricultural equipment
* Small vehicles
* Water pumps

Fuel Efficient, High Output Operation* Digital CDI ignition system with variable timing
* Increased compression ratio
* Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficency
* OHV design for increased efficiency and optimal power transfer

Smooth Performance* Precision engineered components result in lower vibration
* Ball bearing supported crankshaft for greater stability
* Heavy duty balancer shaft
* Improved piston design

Exceptionally Quiet* Large capacity, multi-chamber exhaust system
* Improved camshaft and muffler reduce overall engine noise by up to 5 dB
* Reduced mechanical noise due to piston design
* Forged steel crankshaft and rigid crankcase
* Helical cut gears
* Sophisticated air intake system

Proven Reliability* Oil Alert
* Cast iron cylinder sleeve
* High quality materials, fit, and finish
* Dual element air cleaner
* Fuel Valve
* 3-Year Limited Warranty

Easy To Use And Maintain* Simple throttle control
* Large fuel tanks
* Large automotive type fuel cap
* Dual oil drains and fill
* Easy, convenient, heavy duty control box
* Easily accessible spark plug

Easy Starting* Heavy duty recoil starter
* Automatic mechanical de-compression system
* Variable ignition timing

Emissions Compliant* EPA certified
* No catalyst necessary

Available Options* Low profile versions
* Gear reduction options
* Electic start
* Spark arrester available
* Charge and lamp coils with multiple output options available
* Cyclone Air Cleaner available
* Cyclone Air Cleaner available (Select models)

Specifications* Engine Type: Air-cooled 4-stroke OHV
* Bore X Stroke: 88 X 64 mm
* Displacement: 389 cm3
* Net Power Output\*: 10.7 hp (8.0 kW) @ 3,600 rpm
* Net Torque: 19.5 lb-ft (26.4 Nm) @ 2,500 rpm
* Pto Shaft Rotation: Counterclockwise (from PTO shaft side)
* Compression Ratio: 8.2:1
* Lamp/Charge Coil Options: 25W, 50W / 1A, 3A, 10A, 18A
* Carburetor: Butterfly Float Type
* Ignition System: Digital CDI with variable timing
* Starting System: Recoil/electric
* Lubrication System: Splash
* Governor System: Centrifugal Mass Type
* Air Cleaner: Dual element
* Oil Capacity: 1.16 US qt (1.1 L)
* Fuel Tank Capacity: 6.4 U.S. qts (6.1 liters)
* Fuel: Unleaded 86 octane or higher
* Dry Weight: 69 lb (31.5 kg)

Dimensions* Length (Min): 16.0" (407 mm)
* Width (Min): 19.1" (485 mm)
* Height (Min): 17.7" (449 mm)
