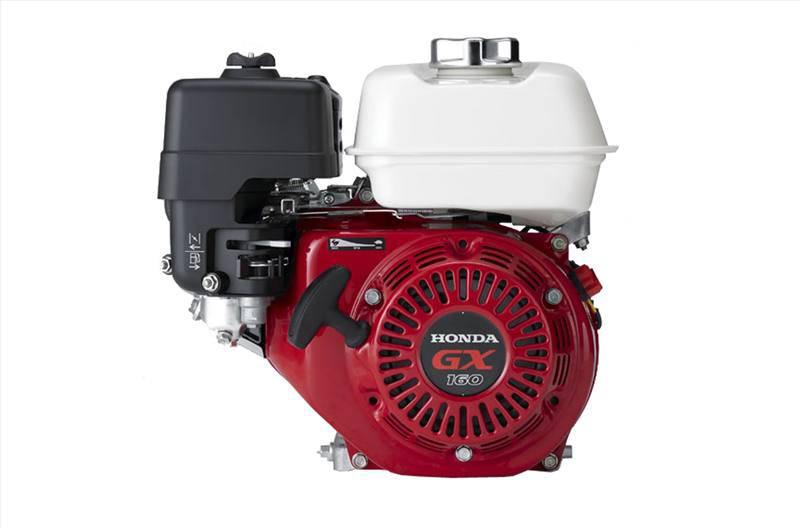

Honda Engines GX160 - New - Available in Hudson Bay

Quality and performance come standard.

Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX120, 160, and 200 live up to the legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.

Common Applications* Commercial lawn and garden equipment
* Tillers / cultivators
* Generators
* Construction / industrial equipment
* Agricultural equipment
* Water pumps
* Pressure Washers
* Forestry equipment

Fuel Efficient, High Output Operation* Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficency
* OHV design for increased efficiency and optimal power transfer
* High compression ratio for better fuel efficiency

Smooth Performance* Precision engineered components result in lower vibration
* Reduced piston weight and precision-balanced crankshaft result in lower engine vibration (GX160)
* Ball bearing supported crankshaft for greater stability

Exceptionally Quiet* Aluminum push rods reduce both valve clearance and noise level. (GX160)
* Muffler and breather valve enhancements reduce noise and improve sound quality
* Reduced mechanical noise due to light weight, noise-reducing materials
* Forged steel crankshaft and rigid crankcase
* Helical cut gears
* Sophisticated air intake system

Proven Reliability* Oil Alert
* New carburetor chamber coating and carburetor filter help to protect against fuel impurities
* Cast iron cylinder sleeve
* High quality materials, fit, and finish
* Dual element air cleaner
* Fuel Valve
* 3-Year Limited Warranty

Easy To Use And Maintain* Simple throttle control
* Large fuel tanks
* Large automotive type fuel cap
* Dual oil drains and fill
* Easy, convenient, heavy duty control box
* Easily accessible spark plug

Easy Starting* Heavy duty recoil starter
* Ergonomic, easy to grip recoil rope design
* Automatic mechanical de-compression system

Emissions Compliant* Lower emissions, same power output!
* No catalyst necessary

Available Options* Low profile versions (Select models)
* Gear reduction options
* Electic start (Select models)
* Spark arrester available
* Charge and lamp coils with multiple output options available
* Cyclone Air Cleaner available ( Select models)

Specifications* Engine Type: Air-cooled 4-stroke OHV
* Bore X Stroke: 68 X 45 mm
* Displacement: 163 cm3
* Net Power Output\*: 4.8 hp (3.6 kW) @ 3,600 rpm
* Net Torque: 7.6 lb-ft (10.3 Nm) @ 2,500 rpm
* Pto Shaft Rotation: Counterclockwise (from PTO shaft side)
* Compression Ratio: 9.0 : 1
* Lamp/Charge Coil Options: 25W, 50W / 1A, 3A, 7A
* Carburetor: Butterfly
* Ignition System: Transistorized magneto
* Starting System: Recoil Starter
* Lubrication System: Splash
* Governor System: Centrifugal Mechanical
* Air Cleaner: Dual Element
* Oil Capacity: 0.61 US qt. (0.58 L)
* Fuel Tank Capacity: 3.3 U.S. qts (3.1 liters)
* Fuel: Unleaded 86 octane or higher
* Dry Weight: 33 lbs. (15.1 kg)

Dimensions* Length (Min): 12.2" (312 mm)
* Width (Min): 14.3" (362 mm)
* Height (Min): 13.6" (346 mm)
