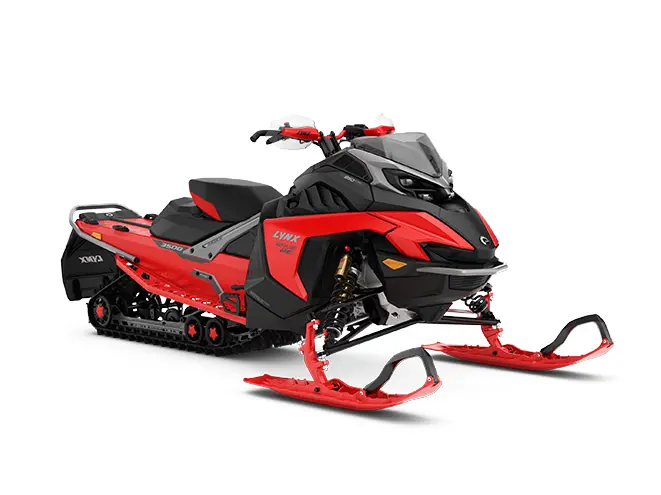

2024 Lynx RAVE RE 850 - New - Available in Kingston

ROTAX® ENGINE: 850 E-TEC
Engine details:   Liquid-cooled, two-stroke, 3-D R.A.V.E.™
Cylinders:   2
Displacement:   849 cc
Bore: 82 mm
Stroke: 80.4 mm
Maximum engine speed:   7900 RPM
Carburation:  Electronic Direct Injection with
additional booster injectors
Recommended fuel type:   Unleaded
Minimum octane: 91
Fuel tank:   37 liters
Oil tank capacity (2-stroke):  3.4 liters

DIMENSIONS
Vehicle overall length (without the snow flap): 3040 mm
Vehicle overall width: 1219 mm
Vehicle overall height: 1140 mm
Ski stance: 1067 mm
Track nominal width: 381 mm
Track nominal length: 3487 mm
Track profile height: 1.25 in. Ice Ripper XT
studded

POWERTRAIN
Drive clutch type: pDrive with clickers
Driven clutch type: QRS
Brake system: RS brake with 4 piston caliber, adjustable
brake lever, aluminium master cylinder

SUSPENSION
Front suspension: LFS+
Front shock: KYB PRO 46 HLCR
Kashima
Rear suspension: PPS³
Center shock: KYB PRO 46 HLCR
Kashima
Rear shock: KYB PRO 46 HLCR
Kashima

FEATURES
Frame: Radien²
Skis: Blade XC+
Seating: Sport, 1-up
Handlebar: U-type aluminium with hooks
Riser block height: 90 mm
Starter: Electric and manual
Reverse: RER
Heated throttle lever: Standard
Heated grips: Standard
Gauge: 7.2 in. wide digital display or
10.25 in Color Display
Windshield: Extra low
USB power outlet: Yes, in front compartment
LinQ attachment: 2 pairs
